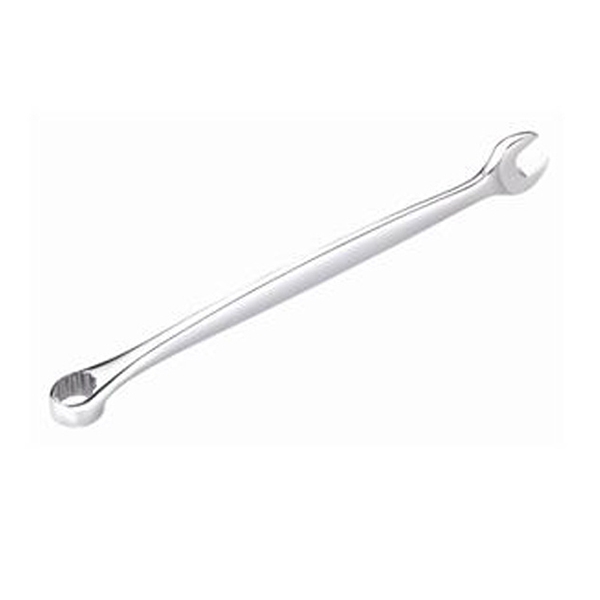

DOLPHIN WRENCH

CM-518DW
Inquiry
  • Made with chrome vanadium steel (6140)
  • Mirror polish & silver satin finished
  • Flat shaped body.
  • Ergonomic design.
  • 15° offset at open-end.
  • More extensive application range open-end.
  • Proper fit-lateral force applying system.
  • Deeper accessibility at ring head.
  • Accorded with DIN standard.

proimages/product/Wrench_Set/11-15/CM-520A/d2.jpg proimages/product/Wrench_Set/11-15/CM-520A/d3.jpg proimages/product/Wrench_Set/11-15/CM-520A/d4.jpg
Metric

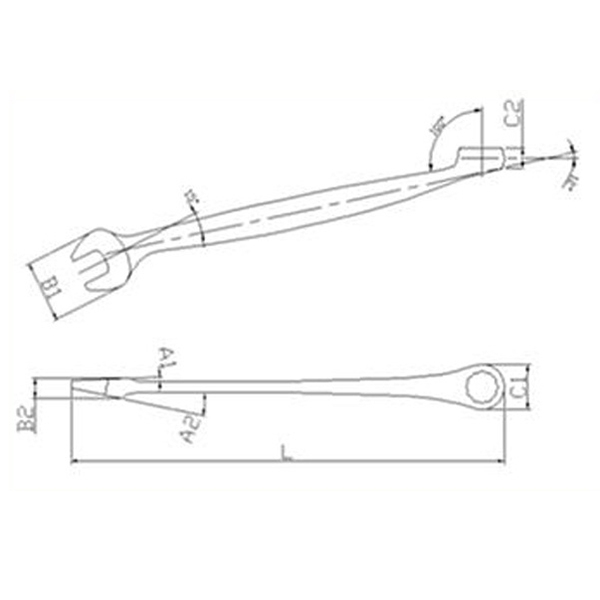

SIZEB1B2C1C2A1A2L(mm)
8 17.5 5 13 6.5 2° 15° 141
9 19.5 6 14 6.8 2° 15° 146
10 21.5 7 16 7 2° 15° 153
11 23.5 8 17 8 2° 14° 162
12 25.5 9 18 8 2° 14° 167
13 27.5 10 20 9 2° 14° 176
14 29.5 11 21 9.5 2° 13° 186
15 31.5 12 23 10 2° 13° 190
16 33.5 13 24 10.5 2° 13° 205
17 35.5 14 26 11 2° 12° 218
18 37.5 15 27 11.5 2° 12° 228
19 39.5 16 28 12 2° 12° 238
20 43 16 31.5 13 2° 11° 270
21 43 16 31.5 13 2° 11° 270
22 45 16 33 14 2° 11° 292
23 45 16 33 14 2° 10° 292
24 49 16 36 15 2° 10° 304
25 49 16 36 15 2° 10° 304
SetContent
CM-518DW-M8 8-10-12-13-14-15-17-18
CM-518DW-M12 8-9-10-11-12-13-14-15-16-17-18-19
SAE
SIZEB1B2C1C2A1A2L(mm)
5/16″ 17.5 5 13 6.5 2° 15° 141
3/8” 21.5 7 16 7 2° 15° 1530
7/16” 23.5 8 17 8 2° 14° 162
1/2” 27.5 10 20 9 2° 14° 176
9/16” 29.5 11 21 9.5 2° 13° 186
5/8” 33.5 13 24 10.5 2° 13° 205
11/16” 35.5 14 26 11 2° 12° 218
3/4” 39.5 16 28 12 2° 12° 238
13/16″ 43 16 31.5 13 2° 11° 270
7/8″ 45 16 33 14 2° 11° 292
15/16″ 49 16 36 15 2° 10° 304
SetContent
CM-5318DW-I8 5/16″-3/8″-7/16″-1/2″-9/16″-5/8″-11/16″-3/4″
