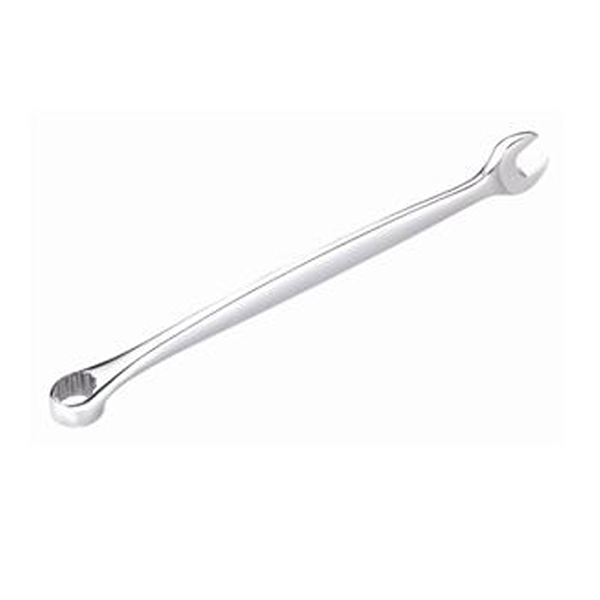

- Made with chrome vanadium steel (6140)
- Mirror polish & silver satin finished
- Flat shaped body.
- Ergonomic design.
- 15° offset at open-end.
- More extensive application range open-end.
- Proper fit-lateral force applying system.
- Deeper accessibility at ring head.
- Accorded with DIN standard.
Metric

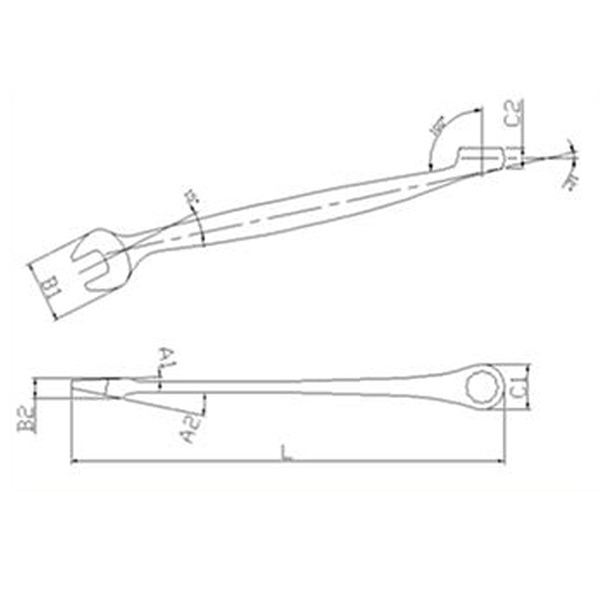

| SIZE | B1 | B2 | C1 | C2 | A1 | A2 | L(mm) |
|---|
| 8 |
17.5 |
5 |
13 |
6.5 |
2° |
15° |
141 |
| 9 |
19.5 |
6 |
14 |
6.8 |
2° |
15° |
146 |
| 10 |
21.5 |
7 |
16 |
7 |
2° |
15° |
153 |
| 11 |
23.5 |
8 |
17 |
8 |
2° |
14° |
162 |
| 12 |
25.5 |
9 |
18 |
8 |
2° |
14° |
167 |
| 13 |
27.5 |
10 |
20 |
9 |
2° |
14° |
176 |
| 14 |
29.5 |
11 |
21 |
9.5 |
2° |
13° |
186 |
| 15 |
31.5 |
12 |
23 |
10 |
2° |
13° |
190 |
| 16 |
33.5 |
13 |
24 |
10.5 |
2° |
13° |
205 |
| 17 |
35.5 |
14 |
26 |
11 |
2° |
12° |
218 |
| 18 |
37.5 |
15 |
27 |
11.5 |
2° |
12° |
228 |
| 19 |
39.5 |
16 |
28 |
12 |
2° |
12° |
238 |
| 20 |
43 |
16 |
31.5 |
13 |
2° |
11° |
270 |
| 21 |
43 |
16 |
31.5 |
13 |
2° |
11° |
270 |
| 22 |
45 |
16 |
33 |
14 |
2° |
11° |
292 |
| 23 |
45 |
16 |
33 |
14 |
2° |
10° |
292 |
| 24 |
49 |
16 |
36 |
15 |
2° |
10° |
304 |
| 25 |
49 |
16 |
36 |
15 |
2° |
10° |
304 |
SAE
| SIZE | B1 | B2 | C1 | C2 | A1 | A2 | L(mm) |
|---|
| 5/16″ |
17.5 |
5 |
13 |
6.5 |
2° |
15° |
141 |
| 3/8” |
21.5 |
7 |
16 |
7 |
2° |
15° |
1530 |
| 7/16” |
23.5 |
8 |
17 |
8 |
2° |
14° |
162 |
| 1/2” |
27.5 |
10 |
20 |
9 |
2° |
14° |
176 |
| 9/16” |
29.5 |
11 |
21 |
9.5 |
2° |
13° |
186 |
| 5/8” |
33.5 |
13 |
24 |
10.5 |
2° |
13° |
205 |
| 11/16” |
35.5 |
14 |
26 |
11 |
2° |
12° |
218 |
| 3/4” |
39.5 |
16 |
28 |
12 |
2° |
12° |
238 |
| 13/16″ |
43 |
16 |
31.5 |
13 |
2° |
11° |
270 |
| 7/8″ |
45 |
16 |
33 |
14 |
2° |
11° |
292 |
| 15/16″ |
49 |
16 |
36 |
15 |
2° |
10° |
304 |
