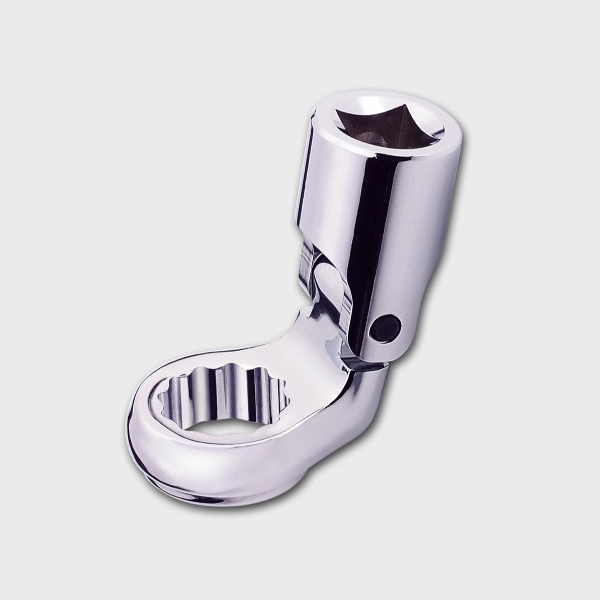

CM-520DB
  • Made with chrome vanadium steel (6140)
  • Mirror polish & satin finish

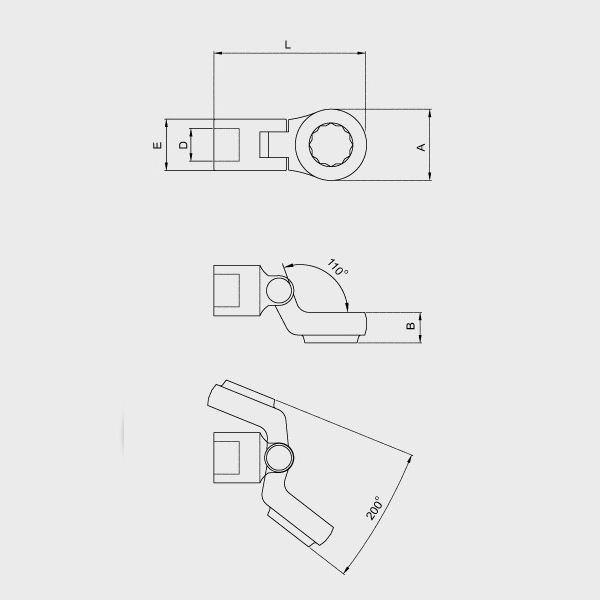

  • Flexible head folds up to 200∘
  • Replace 0,15,45,75 degree's box end wrench
  • Combine use with F-bar, H-bar, T-bar, speed-handle...etc.

proimages/product/Wrench_Set/11-15/CM-520A/d1.jpg proimages/product/Wrench_Set/11-15/CM-520A/d2.jpg proimages/product/Wrench_Set/11-15/CM-520A/d5.jpg proimages/product/Wrench_Set/11-15/CM-520A/d6.jpg
Metric
SIZEABD1E1L1(mm)D2E2L2(mm)
6 15 7 3/8"SQ 18.8 45 1/2"SQ 24.7 53
7 15 7 3/8"SQ 18.8 45 1/2"SQ 24.7 53
8 18 7 3/8"SQ 18.8 49 1/2"SQ 24.7 53
9 18 7 3/8"SQ 18.8 49 1/2"SQ 24.7 56
10 18 7 3/8"SQ 18.8 49 1/2"SQ 24.7 56
11 22 9 3/8"SQ 18.8 53 1/2"SQ 24.7 60
12 22 9 3/8"SQ 18.8 53 1/2"SQ 24.7 60
13 26 11 3/8"SQ 18.8 60 1/2"SQ 24.7 66
14 26 11 3/8"SQ 18.8 60 1/2"SQ 24.7 66
15 26 11 3/8"SQ 18.8 60 1/2"SQ 24.7 66
16 32 13 3/8"SQ 18.8 60 1/2"SQ 24.7 66.5
17 32 13 3/8"SQ 24.7 73.5 1/2"SQ 24.7 73.5
18 32 13 3/8"SQ 24.7 73.5 1/2"SQ 24.7 73.5
19 32 13 3/8"SQ 24.7 73.5 1/2"SQ 24.7 73.5
21 37 16 3/8"SQ 24.7 85 1/2"SQ 24.7 80
22 37 16 3/8"SQ 24.7 85 1/2"SQ 24.7 80
24 40 16 1/2"SQ 24.7 82
27 45 17 1/2"SQ 24.7 86
30 49 21 1/2"SQ 39.5 102
32 49 23 1/2"SQ 39.5 102
Item No.(3/8")Content
CM-520DB-M10 8-9-10-11-12-13-14-15-17-19
CM-520DB-M12 8-9-10-11-12-13-14-15-16-17-18-19
Item No.(1/2")    Content
CM-520DB-M10 16-17-18-19-21-22-24-27-30-32
CM-520DB-M12 13-14-15-16-17-18-19-21-22-24-27
CM-520DB-M13 13-14-15-16-17-18-19-21-22-24-27-30-32
SAE
SIZEABD1E1L1(mm)D2E2L2(mm)
1/4" 15 7 3/8"SQ 18.8 45 1/2"SQ 24.7 53
5/16" 18 7 3/8"SQ 18.8 49 1/2"SQ 24.7 53
3/8" 18 7 3/8"SQ 18.8 49 1/2"SQ 24.7 56
7/16" 22 9 3/8"SQ 18.8 53 1/2"SQ 24.7 60
1/2" 22 9 3/8"SQ 18.8 53 1/2"SQ 24.7 66
9/16" 26 11 3/8"SQ 18.8 60 1/2"SQ 24.7 66
5/8" 32 13 3/8"SQ 24.7 60 1/2"SQ 24.7 66
11/16" 32 13 3/8"SQ 24.7 73.5 1/2"SQ 24.7 73.5
3/4" 32 13 3/8"SQ 24.7 73.5 1/2"SQ 24.7 73.5
13/16" 37 16 3/8"SQ 24.7 85 1/2"SQ 24.7 80
7/8" 37 16 3/8"SQ 24.7 85 1/2"SQ 24.7 80
15/16" 40 16 3/8"SQ 24.7 1/2"SQ 24.7 82
1" 45 17 1/2"SQ 24.7 86
1-1/16" 45 17 1/2"SQ 24.7 86
1-1/8" 49 21 1/2"SQ 39.5 102
1-1/4" 49 23 1/2"SQ 39.5 102
Item No.(3/8")Content
CM-520DB-S8 5/16"-3/8"-7/16"-1/2"-9/16"-5/8"-11/16"-3/4"
CM-520DB-S10 5/16"-3/8"-7/16"-1/2"-9/16"-5/8"-11/16"-3/4"-13/16"-7/8"
CM-520DB-S12 1/4"-5/16"-3/8"-7/16"-1/2"-9/16"-5/8"-11/16"-3/4"-13/16"-7/8"-15/16"
Item No.(1/2")Content
CM-520DB-S9 11/16"-3/4"-13/16"-7/8"-15/16"-1"-(1-1/16")-(1-1/8")-(1-1/4")
CM-520DB-S10 5/8"-11/16"-3/4"-13/16"-7/8"-15/16"-1"-(1-1/16")-(1-1/8")-(1-1/4")
CM-520DB-S12 1/2"-9/16"-5/8"11/16"-3/4"-13/16"-7/8"-15/16"-1"-(1-1/16")-(1-1/4")
